Chevrolet Equinox EV Dimensions
Equinox EV Research
Chevrolet Equinox EV Dimensions by Model Year
The Chevrolet Equinox EV is a five-passenger electric SUV with a 190.55-inch overall length, a 116.3-inch wheelbase, and two rows of seating. It provides 26.4 cubic feet of cargo room behind the second row and 57.2 cubic feet with the rear seats folded. Its exterior and interior measurements have remained consistent across the 2024, 2025, 2026, and 2027 model years.
Equinox EV Measurements for 2024-2027
2027 Chevrolet Equinox EV Dimensions
| Overall Length | 190.55 inches | Wheelbase | 116.3 inches |
|---|---|---|---|
| Width, Mirrors Folded | 76.94 inches | Overall Height | 64.8 inches |
| Minimum Ground Clearance | 6.4 inches | Maximum Cargo Volume | 57.2 cubic feet |
The 2027 Equinox EV retains the same core body measurements and five-passenger seating layout used since its introduction. Cargo capacity is 26.4 cubic feet behind the second row and 57.2 cubic feet with the rear seat folded. The standard dual-height cargo floor can be positioned to prioritize a flatter loading surface or additional space below the floor.
LT 1, LT 2, and RS models share this basic footprint, although wheels, roof equipment, options, and accessories can affect specific clearances and curb weight. Buyers measuring a garage or parking space should also account for the 84.85-inch width with the outside mirrors extended.
2026 Chevrolet Equinox EV Dimensions
190.55 in.
Overall Length
116.3 in.
Wheelbase
57.2 cu. ft.
Maximum Cargo Volume
The 2026 Equinox EV measures 190.55 inches long, 76.94 inches wide with the mirrors folded, and 64.8 inches tall. Its 116.3-inch wheelbase and 6.4 inches of minimum ground clearance carry over from the 2024 model.
Passenger volume is 102.24 cubic feet, while cargo volume measures 26.4 cubic feet behind the rear seat and 57.2 cubic feet with the second row folded. Chevrolet did not redesign the body or cabin for 2026, so selecting LT 1, LT 2, or RS changes features and styling rather than the vehicle's fundamental passenger and cargo dimensions.
2025 Chevrolet Equinox EV Dimensions
190.55 in.
Overall Length
26.4 cu. ft.
Cargo Behind Rear Seat
102.24 cu. ft.
Passenger Volume
The 2025 Equinox EV measures 190.55 inches long with a 116.3-inch wheelbase, a width of 76.94 inches with the mirrors folded, a height of 64.8 inches, and 6.4 inches of minimum ground clearance. These measurements match the Equinox EV's dedicated electric-vehicle body.
Cargo volume is 26.4 cubic feet behind the second row and 57.2 cubic feet with that row folded. The cabin seats five and provides 102.24 cubic feet of passenger volume. These measurements apply to the Equinox EV body regardless of whether the vehicle has front-wheel drive or available all-wheel drive.
2024 Chevrolet Equinox EV Dimensions
190.55 in.
Overall Length
41.65 in.
Front Legroom
38.0 in.
Rear Legroom
The Equinox EV first went on sale as a 2024 model. Its launch-year measurements are 190.55 inches long, 76.94 inches wide with the mirrors folded, 64.8 inches tall, and 116.3 inches between the axles. Chevrolet lists 6.4 inches of minimum ground clearance and a 38.06-foot curb-to-curb turning circle.
The 2024 model provides 26.4 cubic feet of cargo room behind the second row and 57.2 cubic feet behind the front seats. Passenger volume measures 102.24 cubic feet, with 41.65 inches of front legroom and 38 inches of rear legroom.
Equinox EV Exterior Dimensions
These body measurements apply across the 2024 through 2027 Equinox EV model years. Measurements can vary slightly with accessories, tire condition, vehicle load, and the method used, so confirm critical garage or equipment clearances with the individual vehicle.
| Exterior Measurement | 2024-2027 Equinox EV | Why It Matters |
|---|---|---|
| Overall length | 190.55 inches | Useful when checking garage depth and parallel parking space |
| Wheelbase | 116.3 inches | Helps create passenger room between the front and rear axles |
| Width, mirrors folded | 76.94 inches | Important for narrow garages and parking spaces |
| Width, mirrors extended | 84.85 inches | Represents the broader space needed while driving or entering a garage |
| Overall height | 64.8 inches | Relevant to low overhead storage and clearance limits |
| Minimum ground clearance | 6.4 inches | Helps assess curbs, driveways, and uneven surfaces |
| Turning circle | 38.06 feet curb to curb | Provides a reference for U-turns and tight parking areas |
Passenger Room in Both Rows
The Equinox EV seats up to five. Chevrolet lists 41.65 inches of front legroom and 38 inches in the second row, along with 39.15 inches of front headroom and 38.49 inches of rear headroom. The 116.3-inch wheelbase gives the passenger compartment more distance between the axles than the gas-powered Equinox.
Front shoulder room measures 58.64 inches, compared with 55.45 inches in the rear. Front and rear hip room measure 55.95 and 50.7 inches. Seat shape, adjustment range, child restraints, and individual proportions still affect how the space feels, which is why we recommend sitting in both rows before choosing a vehicle.

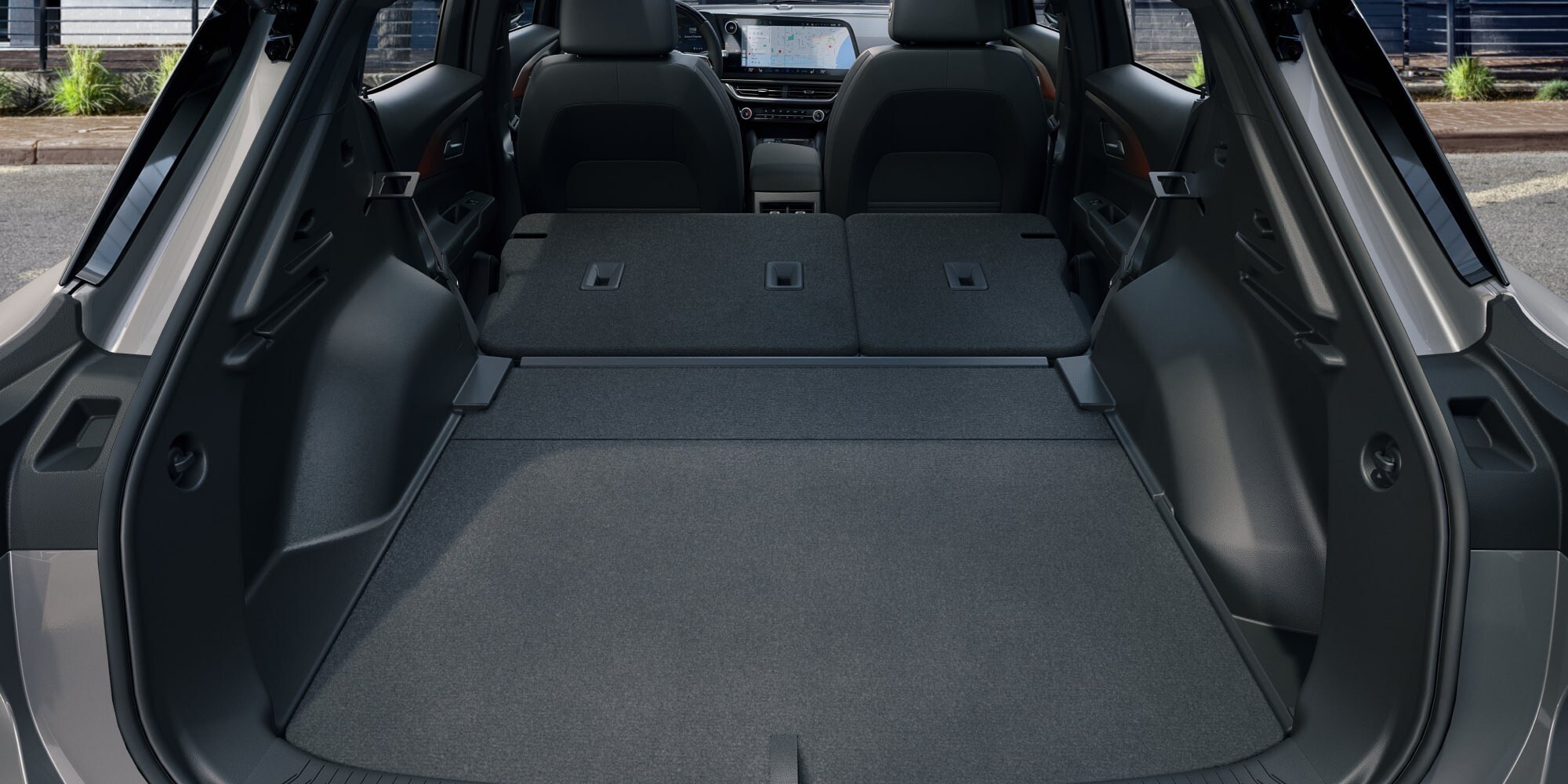

Cargo Space for Daily Use
With the second row upright, the Equinox EV provides 26.4 cubic feet of cargo room for groceries, luggage, sports bags, and other daily items. Folding the 60/40-split rear seat expands capacity to 57.2 cubic feet and allows longer cargo to extend toward the front seats.
The dual-height cargo floor provides two useful arrangements. Its upper position can create a more even transition when the rear seat is folded, while the lower position can provide additional vertical room. Chevrolet does not list a front trunk for the Equinox EV, so its primary storage space is behind the passenger cabin.
Equinox EV and Gas Equinox Are Different Sizes
Despite sharing the Equinox name, the current electric and gas-powered SUVs use different vehicle structures. The 2027 Equinox EV is 190.55 inches long with a 116.3-inch wheelbase. The 2027 gas Equinox measures 183.2 inches long with a 107.5-inch wheelbase. That makes the EV about 7.4 inches longer overall and gives it 8.8 additional inches between the axles.
The gas model offers more published cargo volume, with 29.8 cubic feet behind its rear seat and 63.5 cubic feet maximum. The Equinox EV provides 26.4 and 57.2 cubic feet, respectively. Buyers should use the specifications for the exact powertrain rather than applying gas Equinox measurements to an Equinox EV.
Chevrolet Equinox EV Dimensions FAQ
How long is the Chevrolet Equinox EV?
The 2024 through 2027 Chevrolet Equinox EV measures 190.55 inches long, or approximately 15.9 feet. Its wheelbase measures 116.3 inches.
How much cargo space does the Equinox EV have?
The Equinox EV provides 26.4 cubic feet behind the second row and 57.2 cubic feet with the rear seat folded. A dual-height cargo floor allows owners to adjust the rear storage layout.
How many passengers fit in an Equinox EV?
The Equinox EV seats up to five passengers in two rows. It provides 41.65 inches of front legroom and 38 inches of rear legroom.
Are the Equinox EV and gas Equinox the same size?
No. The Equinox EV uses a longer body and wheelbase. For 2027, the EV is approximately 7.4 inches longer than the gas Equinox, while the gas model has a higher published maximum cargo volume.
Check the Equinox EV's Space at Victorville Chevrolet
Specifications are helpful, but your passengers and cargo provide the most useful test. At Victorville Chevrolet, we can help you check rear-seat access, compare cargo-floor positions, fold the second row, and review the equipment installed on an individual Equinox EV.
Bring the measurements of a garage, mobility device, stroller, pet crate, or other item you regularly carry. Our team can help you compare those needs with the vehicle's dimensions and arrange a test drive in Victorville.
Specifications are based on Chevrolet-published information and may vary by vehicle, equipment, accessories, measuring method, and production changes. Cargo and passenger volumes are calculated using standardized methods and may not represent space available for every item. Confirm important dimensions and equipment on the individual vehicle before purchase.
